Sinks and their
Specifications
- To view a specific
sink, just click on it's name from the following list.
- To print a sink's spec
sheet, use the print command from the "File" pull-down menu of
your browser once you've advanced to that sink's spec sheet by
clicking on it's name from the following list.
- After viewing or printing sink's
spec sheet, press the "Back" button from your browser's "Tool Bar"
to return to this list.
- Note: All bowls are self-rimming
unless otherwise noted.
Return to Home
Page
|
Sink Name
|
Length
|
Width
|
Height
|
Overflow
|
Weight
|
Sink Shape
|
Comments
|
|

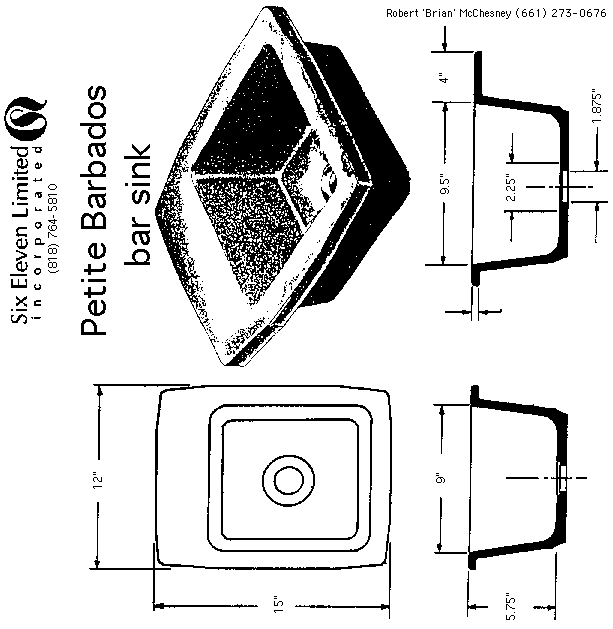

Petite Barbados bar
sink
|
15"
|
12"
|
5.75"
|
No
|
15 lbs.
|
Square
|
6" maximum center set, center drain.
|
|

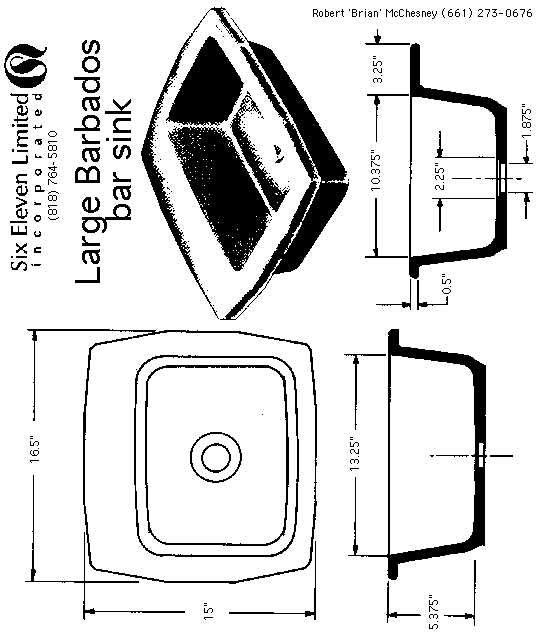

Large Barbados bar
sink
|
15"
|
16.5"
|
5.375"
|
No
|
20 lbs.
|
Rectangle
|
10" maximum center set, center drain.
|
|

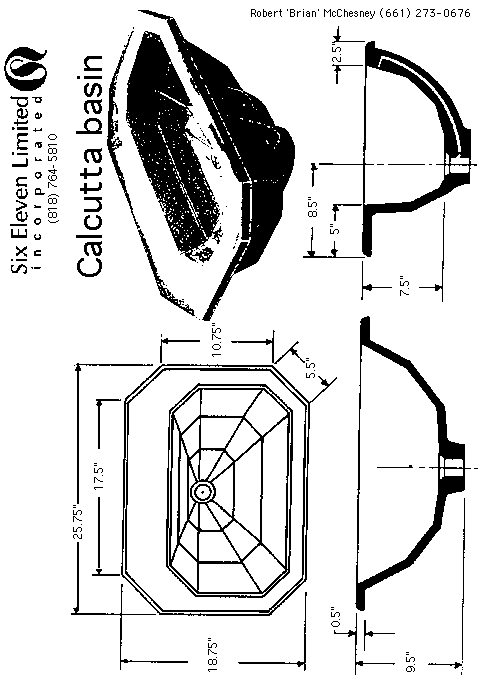

Calcutta basin
|
18.75"
|
25.75"
|
9.5"
|
Yes
|
29 lbs.
|
Octagon
|
12" maximum center set.
|
|

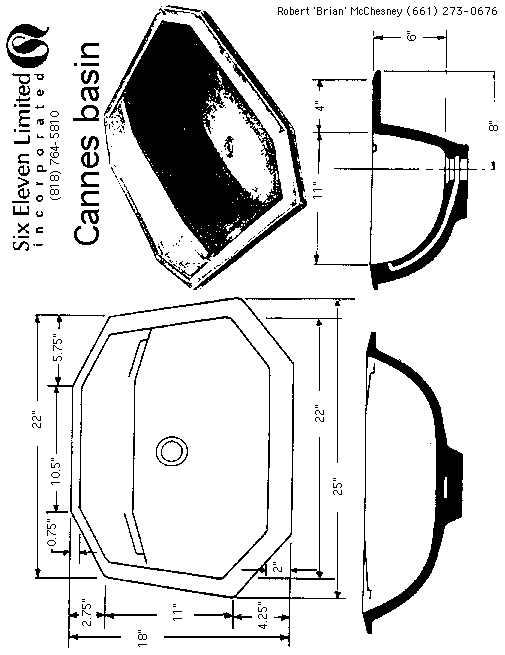

Cannes basin
|
18"
|
22"
|
6"
|
Yes
|
26 lbs.
|
Octagon
|
8" maximum center set.
|
|

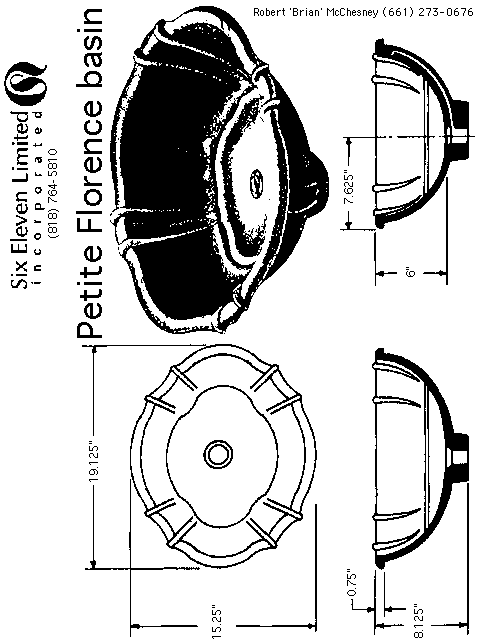

Petite Florence
basin
|
15.25"
|
19.125"
|
8.125"
|
Yes
|
13 lbs.
|
Fleur-de-lis
|
No maximum center set, center drain.
|
|

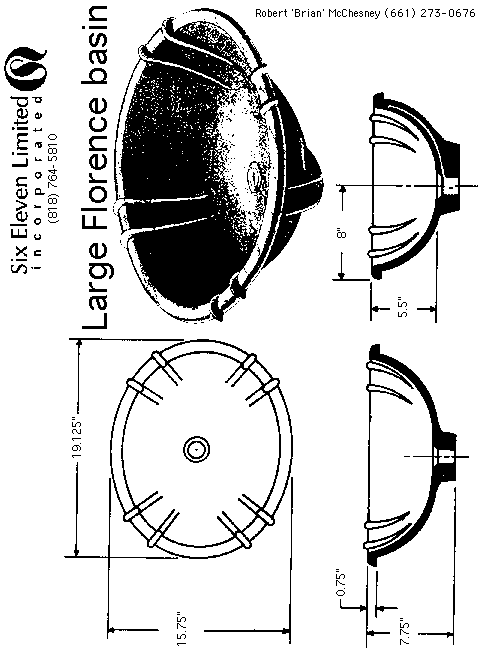

Large Florence
basin
|
15.75"
|
19.125"
|
7.75"
|
Yes
|
15 lbs.
|
Oval
|
No maximum center set.
|
|

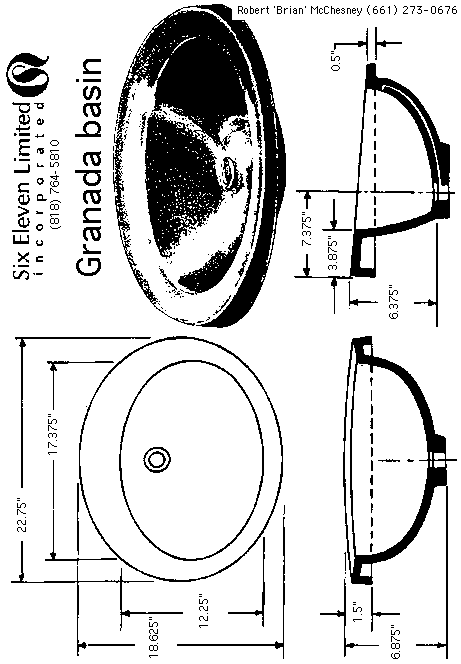

Granada basin
|
18.625"
|
22.75"
|
6.875"
|
Yes
|
25 lbs.
|
Oval
|
8" maximum center set.
|
|

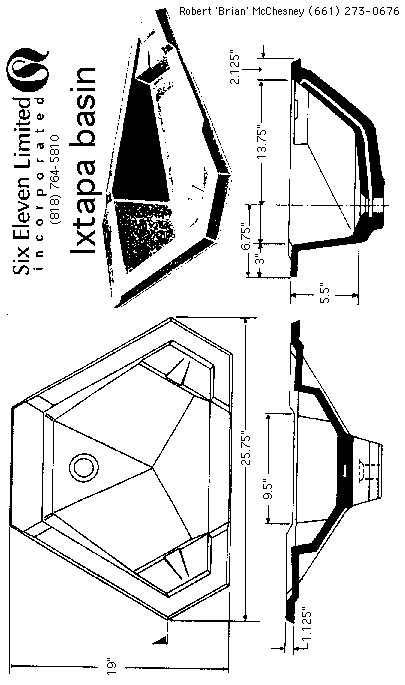

Ixtapa basin
|
19"
|
25.75"
|
5.5"
|
Yes
|
24 lbs.
|
Neo-angle
|
6" maximum center set.
|
|

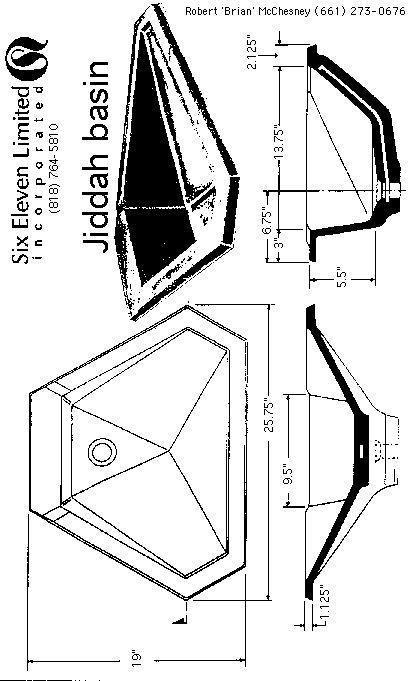

Jiddah basin
|
19"
|
25.75"
|
5.5"
|
Yes
|
25 lbs.
|
Neo-angle
|
6" maximum center set.
|
|

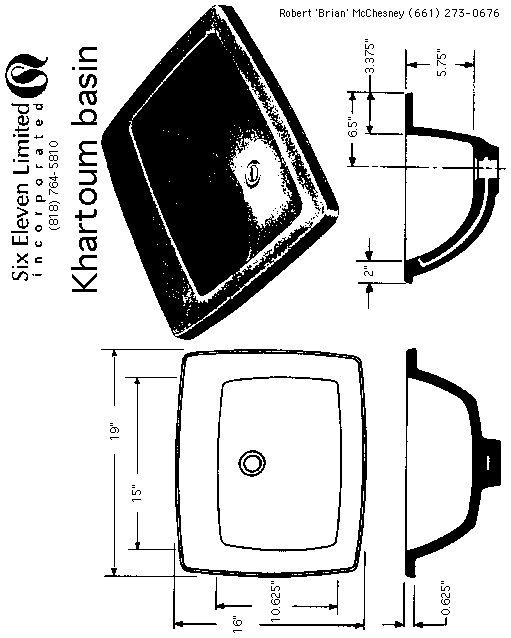

Khartoum basin
|
16"
|
19"
|
5.75"
|
Yes
|
25 lbs.
|
Rectangle
|
16" maximum center set.
|
|

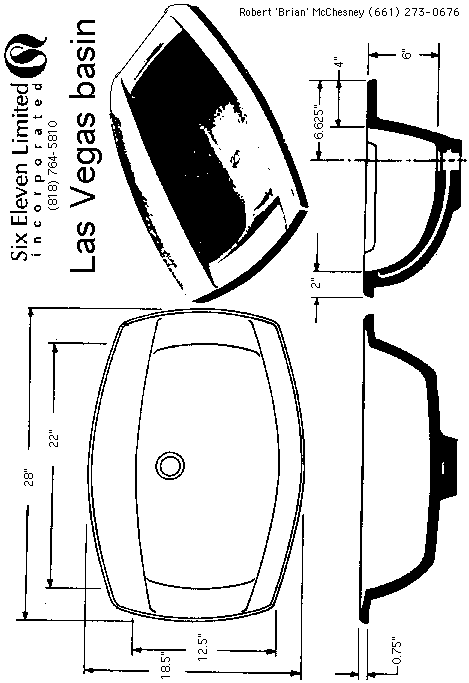

Las Vegas basin
|
18.5"
|
28"
|
6"
|
Yes
|
24 lbs.
|
Rectangle
|
16' maximum center set.
|
|

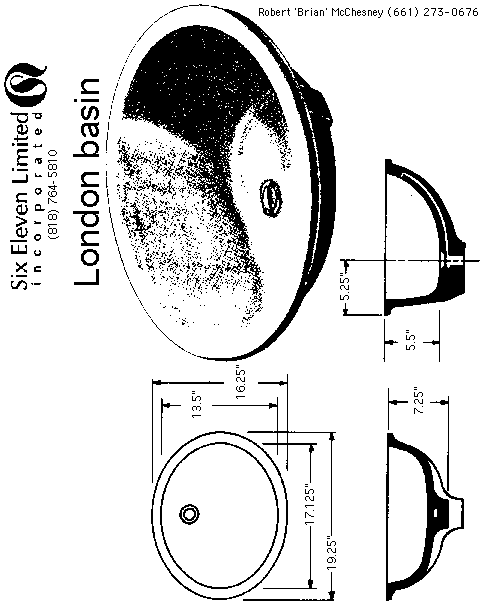

London basin
|
16.25"
|
19.25"
|
5.5"
|
Yes
|
19 lbs.
|
Circle
|
No maximum center set, undermount bowl.
|
|

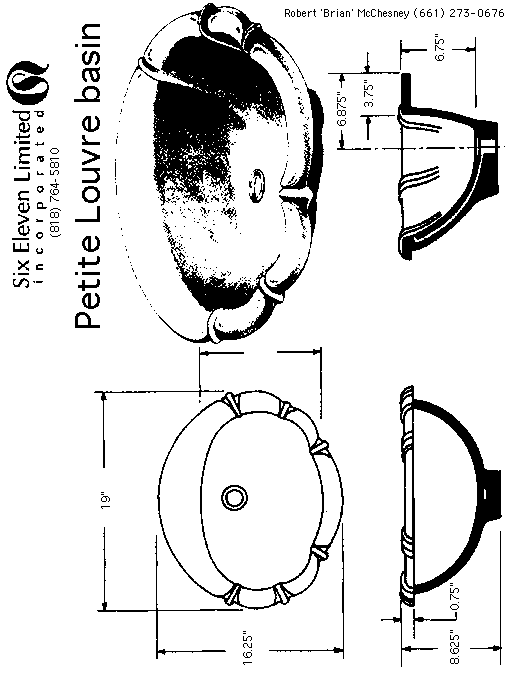

Petite Louvre
basin
|
16.25"
|
19"
|
8.625"
|
No
|
15 lbs.
|
Fleur-de-lis
|
6" maximum center set.
|
|

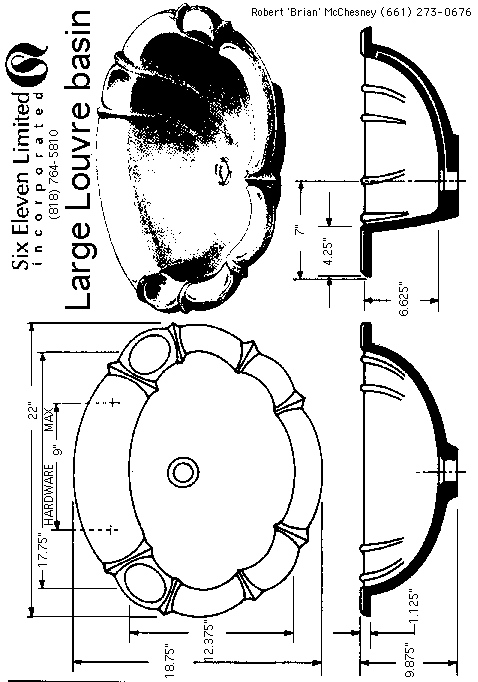

Large Loyvre basin
|
18.75"
|
22"
|
9.875"
|
Yes
|
21 lbs.
|
Fleur-de-lis
|
9" maximum center set.
|
|

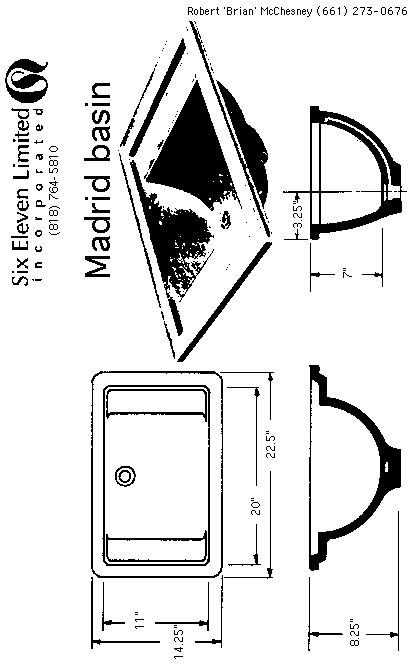

Madrid basin
|
14.25"
|
22.5"
|
8.25"
|
Yes
|
22 lbs.
|
Rectangle
|
No maximum center set, undermount bowl.
|
|

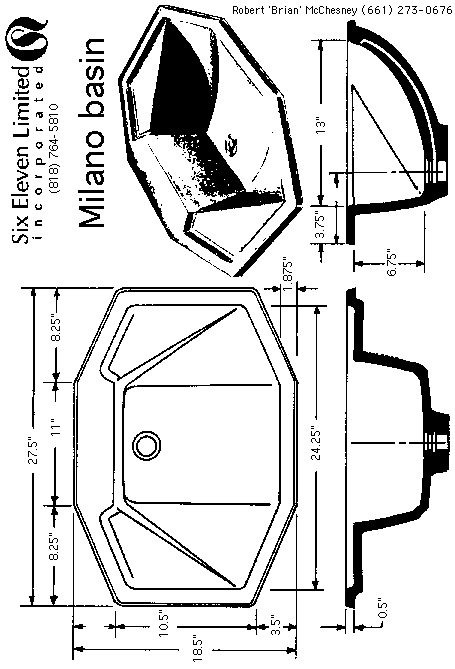

Milano basin
|
18.5"
|
27.5"
|
6.75"
|
Yes
|
25 lbs.
|
Octagon
|
8" maximum center set.
|
|

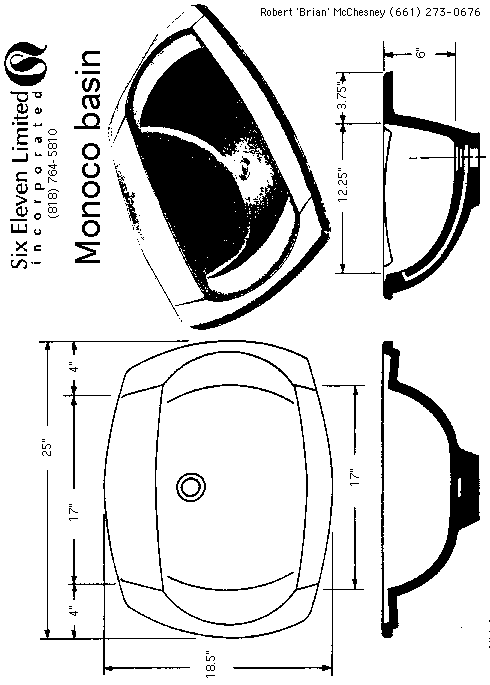

Monoco basin
|
18.5"
|
25"
|
6"
|
Yes
|
25 lbs.
|
Oval
|
12" maximum center set.
|
|

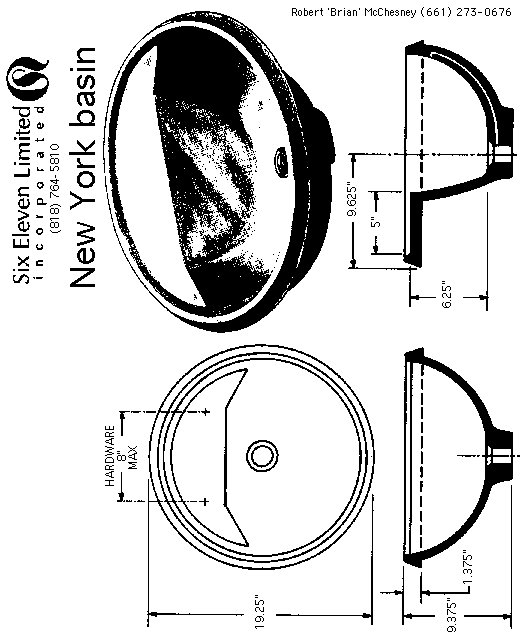

New York basin
|
19.25"
|
19.25"
|
9.375"
|
Yes
|
28 lbs.
|
Circle
|
8" maximum center set, center drain.
|
|

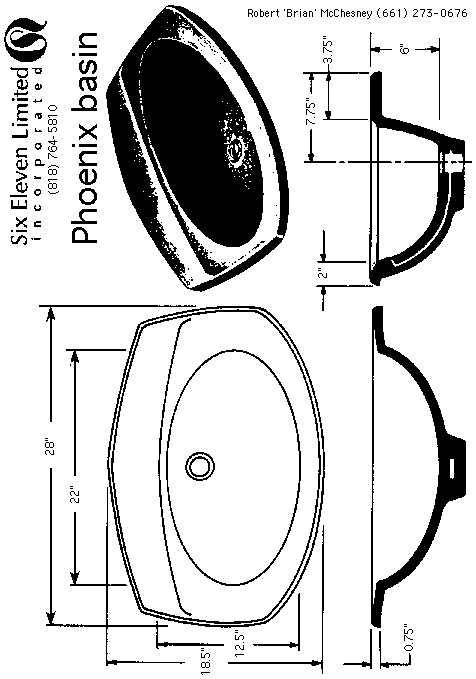

Phoenix basin
|
18.5"
|
28"
|
6"
|
Yes
|
25 lbs.
|
Oval
|
16" maximum center set.
|
|

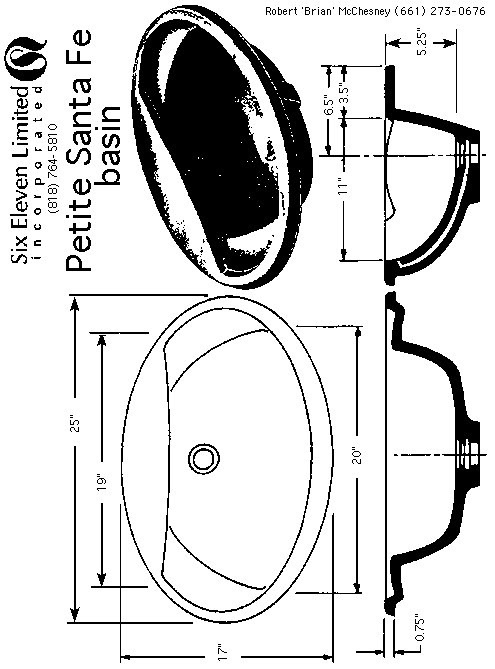

Petite Santa Fe
basin
|
17"
|
25"
|
5.25"
|
Yes
|
18 lbs.
|
Oval
|
8" maximum center set.
|
|

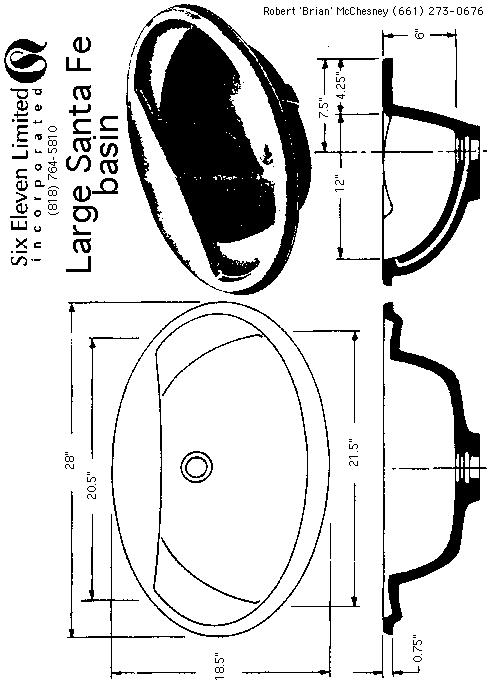

Large Santa Fe
basin
|
18.5"
|
28"
|
6"
|
Yes
|
25 lbs.
|
Oval
|
8" maximum center set.
|
|

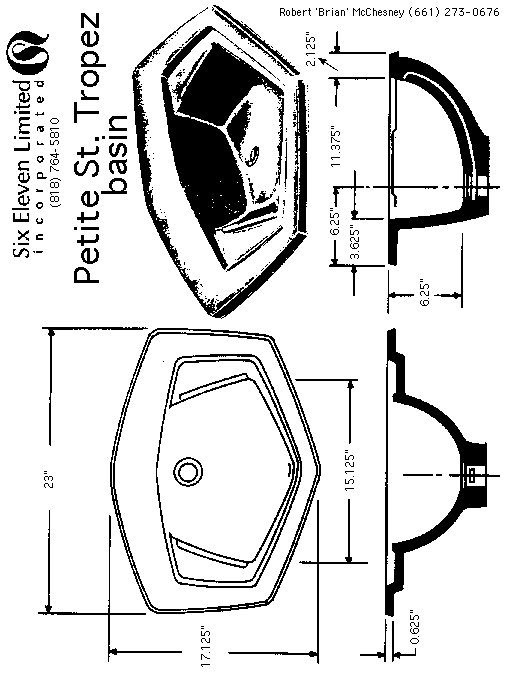

Petite St. Tropez
basin
|
17.125"
|
23"
|
6.25"
|
Yes
|
18 lbs.
|
Hexagon
|
9" maximum center set.
|
|
Large St. Tropez
basin
|
18.75"
|
28"
|
6"
|
Yes
|
25 lbs.
|
Hexagon
|
14" maximum center set.
|
|

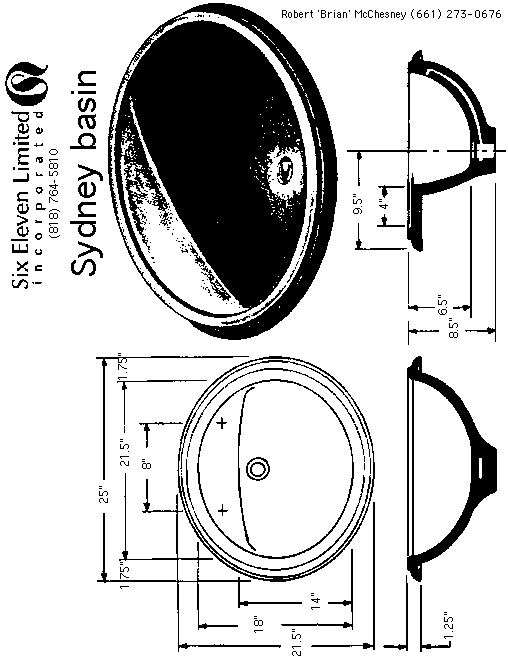

Sydney basin
|
21.5"
|
25"
|
8.5"
|
Yes
|
32 lbs.
|
Circle
|
8" maximum center set.
|
|

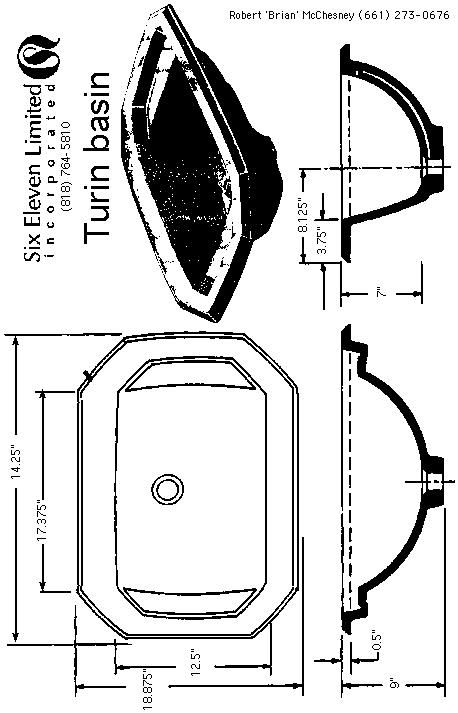

Turin basin
|
18.875"
|
27.25"
|
9"
|
Yes
|
31 lbs.
|
Octagon
|
12" maximum center set.
|
